吸引輸送機 吸引輸送機(射出成形機直結型)

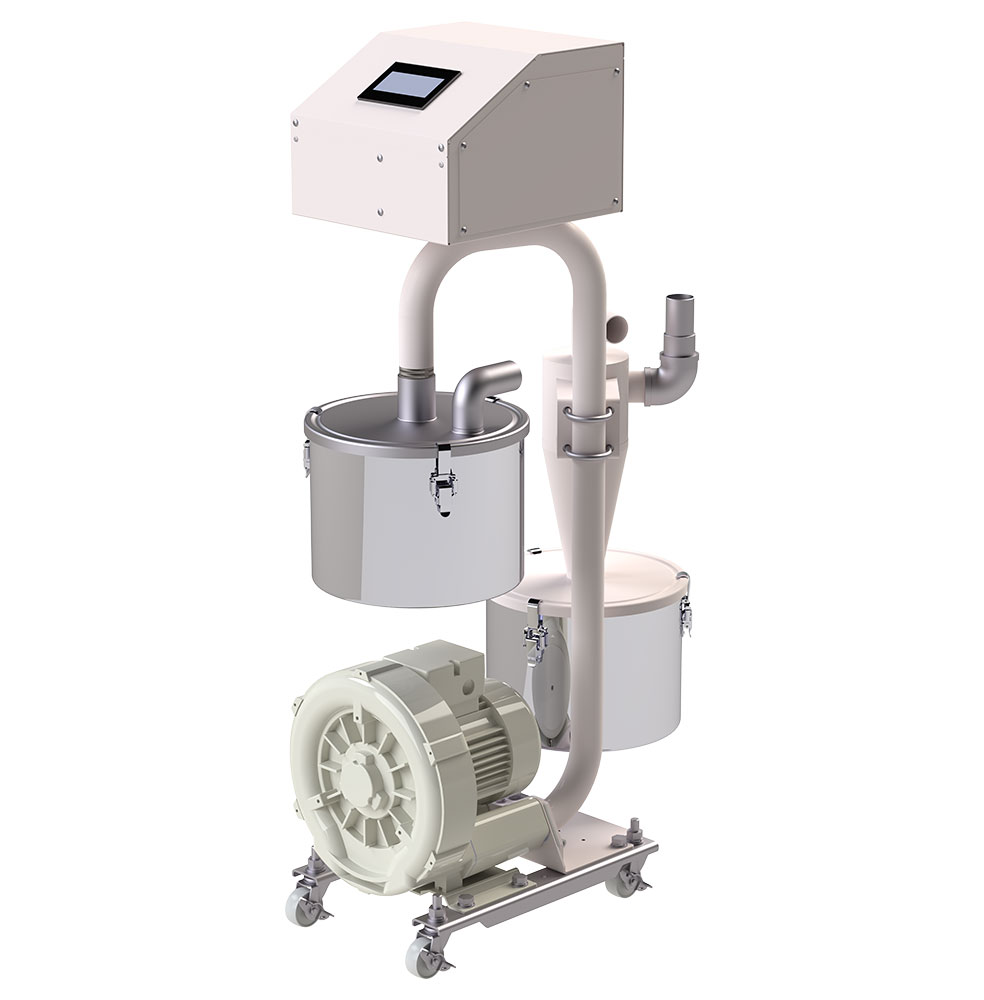

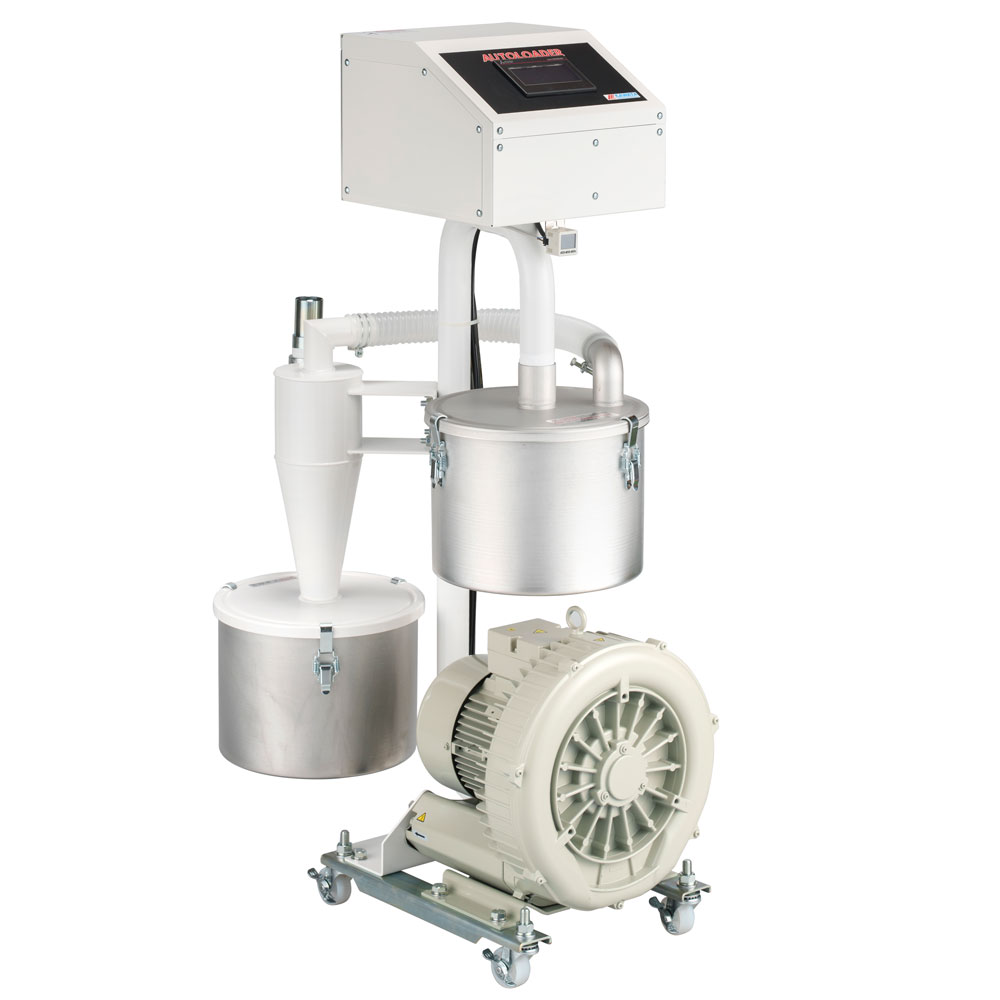

オートローダー
VLシリーズ
VL-0208a／VL-0219a／VL-0219a／VL-0719a／VL-0734a-3
Please select a symptom
輸送の症状
サイクル異常 （シングルローダー）
異常表示有
動作：
運転動作は継続します。
満杯を検知すると、異常は解除されます。
解除方法：
材料が空で無いか、または漏れは無いか、満杯レベル計は正しく接続されているか、配管に詰まりは無いか、ブロワの風量は十分か、異常検知の回数または時間が少なすぎないかを確認してください。
サイクル異常 （多方向ローダー）
異常表示有
動作：
運転動作は継続します。
満杯を検知すると、異常は解除されます。
解除方法：
材料が空で無いか、また漏れは無いか、満杯レベル計は正しく接続されているか、配管に詰まりは無いか、ブロワの風量は十分か、異常検知の回数または時間が少なすぎないかを確認してください。
ブロワ過負荷
異常表示有
動作：
全ての方向がサイクル停止します。
異常解除操作を行い、改めて運転操作を行ってください。
解除方法：
電源に異常が無いか、ケーブルは正しく接続されているか、ブロワの掃除は十分かを確認した後に、サーマルリレーをリセットして下さい。
異常モニタでリセットボタンを押して、表示が消えた事を確認してください。
ブロワは起動するが吸引力が不足する （エアリーク）
原因と対策：
ホッパーユニット
①上蓋とホッパの間に隙間がある
→締付調整かパッキン交換
②ダンパに歪みまたは摩耗がある
→ダンパ交換
③スロートバルブ取付不良
→取付位置調整
④フレキシブルホースの接続不良
→締付調整
⑤集塵タンクの締付が悪い
→締付調整またはパッキン交換
⑥底部ダンパに隙間がある
→締付調整
⑦ドアとケーシングに隙間がある
→締付調整またはパッキン交換
ブロワは起動するが吸引力が不足する （フィルタの目詰まりや、ホース中の閉塞）
原因と対策：
①粉塵等によるフィルタの目詰まり
→清掃、交換
②ホース中で異物による目詰まり、または輸送物が充満する
→ホース中の掃除またはエアーコントローラを全開にする
所定の風量、風圧があるのに能力不足
原因と対策：
①ベンド部（曲り部）の数が多く曲り半径が小さい
→配管のやり直し。曲率半径を400mm以上にする
②加熱された材料または強く静電気の発生する材料
→材料温度を低くする。
静電気防止等の処置をする
③ブリッジが発生する材料
→ブリッジ防止機の設置
その他の症状
タッチパネルが点灯しない
原因と対策：
①ブレーカがOFFになっている
→ブレーカをONにする
②サーキットプロテクタがOFFになっている
→サーキットプロテクタをONにする
タッチパネルがつくが運転操作を行ってもブロワが起動しない
原因と対策：
①各ターミナルの締付け不良
→増締め
②レベルスイッチの動作不良
→レベルスイッチ交換
③過負荷
→原因を除去しサーマルリレーをリセットする
④電磁開閉器不良
→確認後交換する
⑤シーケンサ不良
→確認後交換する
Others
原因と対策：
①CPU破損
→シーケンサの交換
②制御盤周囲の温度が高い時
→換気のチェック
③電気機器の動作不良
→負荷の状態、締付部の確認
④レベルスイッチの配線忘れ
→コネクタを接続
