Pellet Conveying [autoloader] AL series <Multi-purpose type>
Pellet Conveying [autoloader] AL series <Multi-purpose type>

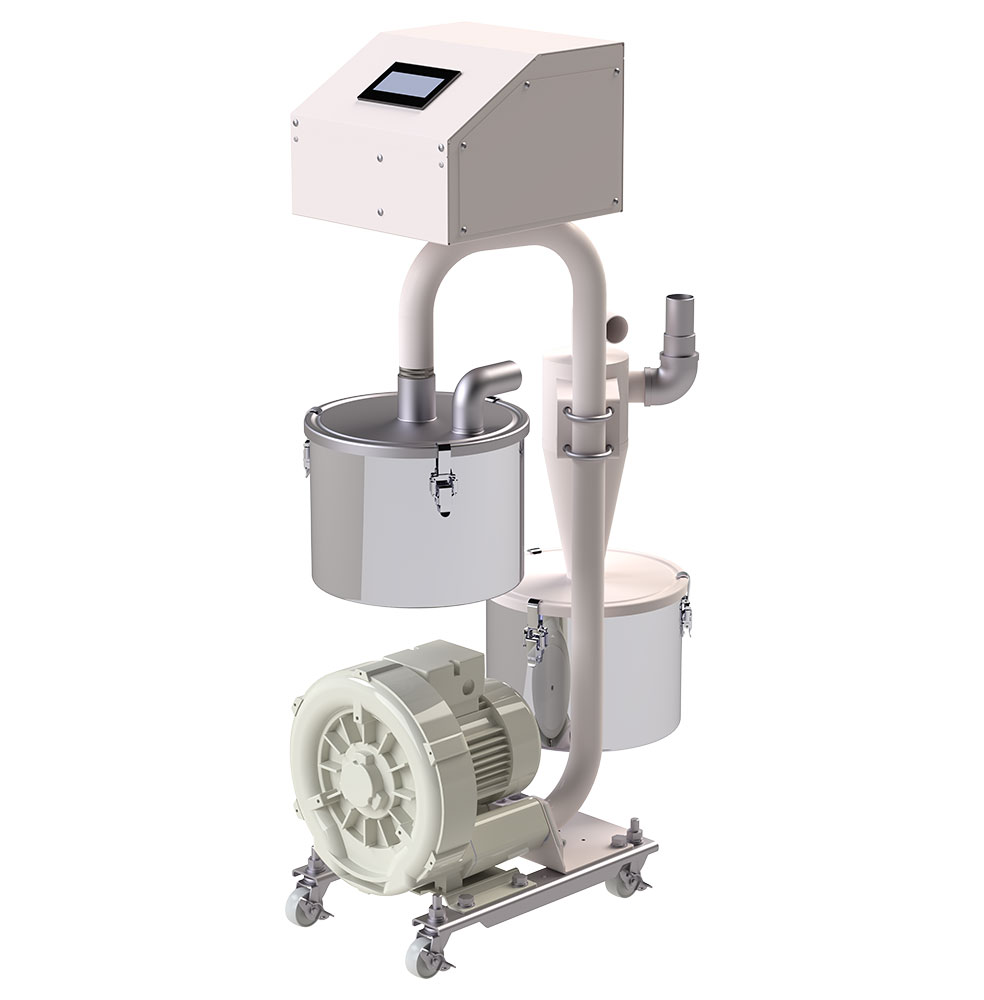

Conveying suction Conveying Machine (multi-purpose type) Autoloader AL series <multi-purpose type>
Material supply to various hoppers with simple structure
- Supports multi-purpose, mass supply
- Space saving considering installation location, simplification of cleaning and maintenance
- Easy operation with touch panel type
カタログ請求はこちら
Overview

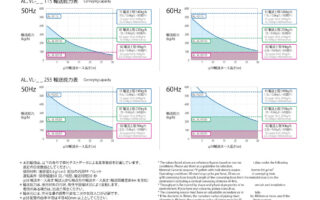

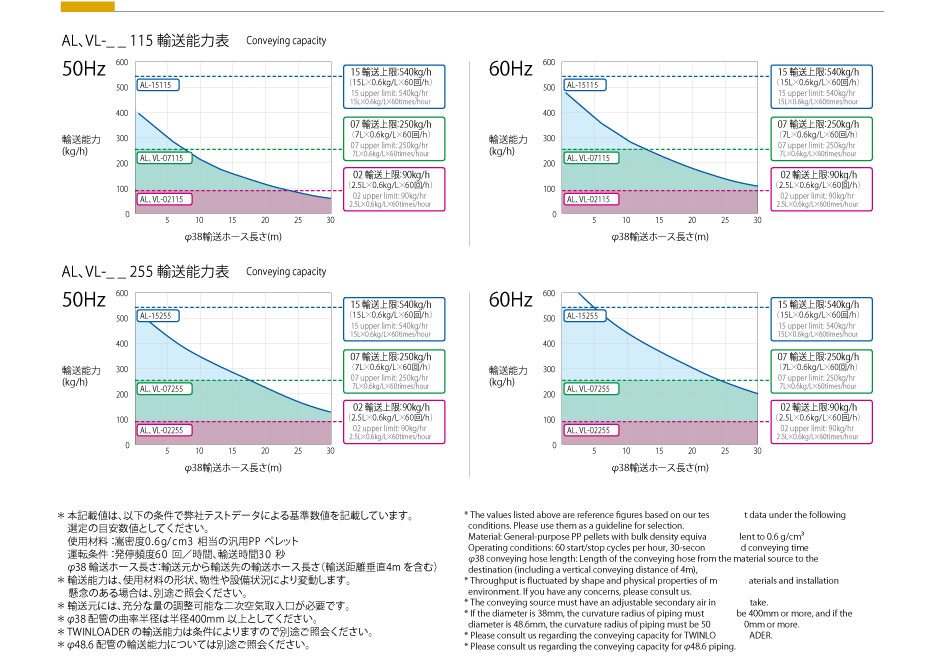

Conveying capacity table
Option Cyclone with dust collecting tank
Reduces the filter cleaning frequency with powdery material. (option)
Option bag filter
This is a wide area cloth filter. Suitable for Conveying powdery materials and grinding materials. (option)

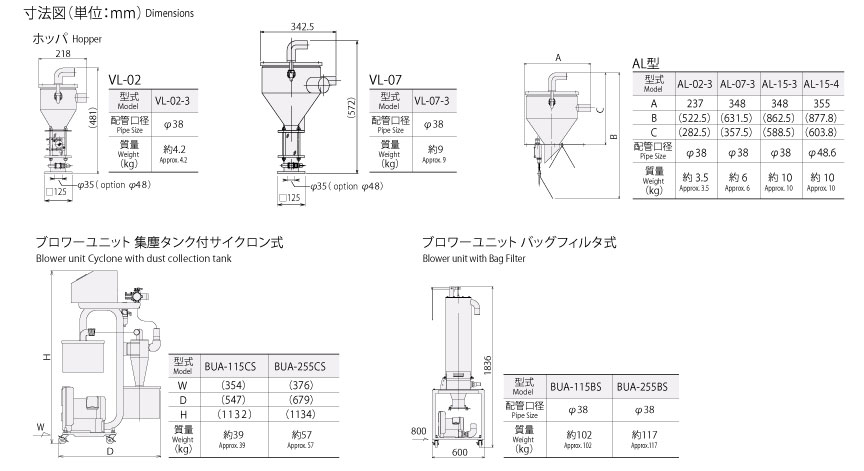

Dimensional drawing
specification
| Model | Hopper | Blower capacity (KW) (50/60 Hz) |
|
|---|---|---|---|
| Capacity (L) | Damper structure | ||
| AL-0208a | 2.5 | Metal damper system | 0.55/0.85 |
| AL-0708a | 7 | 0.55/0.85 | |
| <AL-0708 Ba> | |||
| AL-0719a | 7 | 1.3/1.9 | |
| <AL-0719 Ba> | |||
| AL-1534a | 15 | 2.3/3.4 | |
| <AL-1534 Ba> | |||
※ B with bag filter (AL - 0208a is not compatible with bag filter)
