Mixer
High-speed flow Mixing SMV-Ba series <Variable Type>
High-speed flow Mixing SMV-Ba series <Variable Type>
Mixer High-speed fluid Mixing (inverter/gelation small quantity type) Super mixer SMV-Ba series <Variable Type>
A condensation of original ideas for research and testing, suitable for Mixing and dispersion processing in 10L and 20L.
- Inverter adopt inverter, freewheeling speed of blades, data acquisition function as standard equipment
- Contact part is all SUS304 specification
- Discharge part is easy disassembly and maintenance and cleaning are easy
- Easy to move with casters
カタログ請求はこちら
Overview
Cleanability (discharge part) 1
Easy to handle hinged opening and closing
Cleanability (discharge part) 2
Can be disassembled without tools and easy to clean

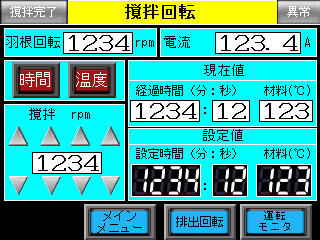

Operability (touch panel)
Adopted menu type color touch panel

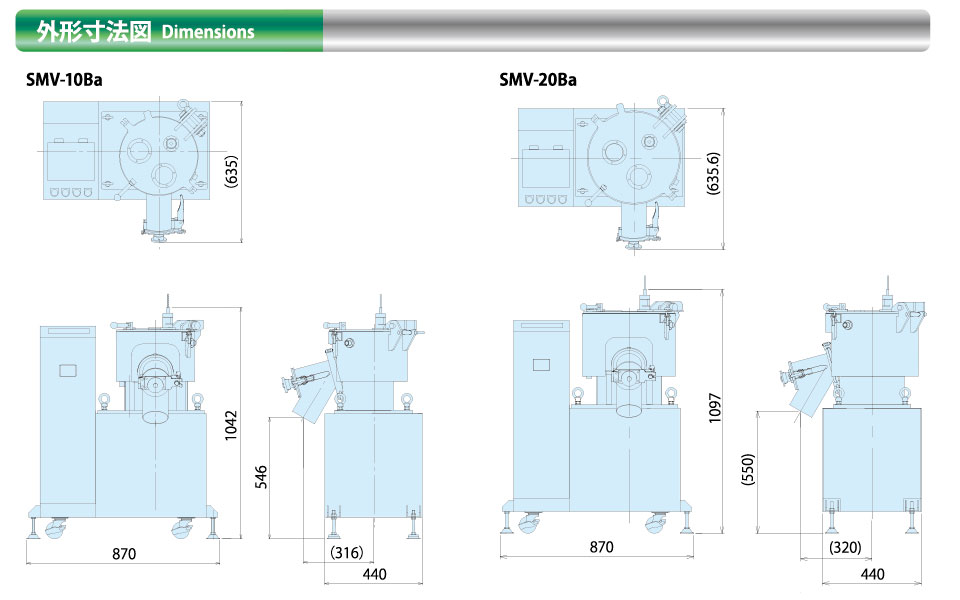

Dimensional drawing
Video
specification
| Model | Tank capacity (L) | Motor (kW) |
|---|---|---|
| SMV-10Ba | 6～7 | 3.7 4P inverter |
| SMV-20Ba | 12～14 | 5.5 4 P inverter |
※ The tank has a jacket structure.
